S-type stock rail

[etiam viviens]

I have a old s-type stock butt non of my stuff fits in the rail. Most rails I have are UIT type butt the do not fit.

Does someone know what should fit there

[Ca_Varminter]

I believe it uses Anschutz T-slot accessories....
I never owned or held one...
You will need to measure the slot width to be sure!!

Good Luck,
Stuart

[etiam viviens]

Anschütz and UIT should be the same and those won't fit. Could it be freeland rail system.

[Ca_Varminter]

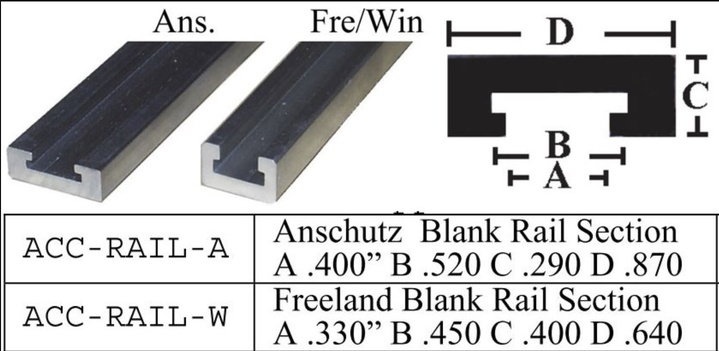

Here is a the specs of both T-slots....


HTH,
Stuart

[etiam viviens]

Just measured the rail, its neither of those two.
           UIT      s-type
Opening   10 mm      11 mm
Height     4 mm       5 mm
Width     13 mm    14.5 mm

Did theoben had it own rail type?

[Ca_Varminter]

They might of made it themselves....
But but looks of it the Anschutz t-slot accessories would probably would work....


Stuart

[Ca_Varminter]

Well this may be a little late in coming.....
I Just found I sling stud the WILL fit the S-Type rail!!!
It is from RAW...
According to their RAW's site... They are using the UIT RAIL!!

Sliding rail stud for attaching a bipod to any rifle fitted with a UIT style rail, all Rapid Air Weapons rifles fitted with a front rail and Theoben S type rifles. Larger Securing screw than other manufacturers and a steel locking ring securing the stud, this is designed for strength and longevity. Slide Made from Aluminum and stud made from Steel.

HTH,
Stuart
