Pellet Sizing

Started by Topsparx1, July 26, 2020, 10:23:32 AM

Previous topic - Next topic

Topsparx1

Ive measured the aperture of my barrel with a standard vernier calliper (not digital) and its 5.5mm, the pellets I use (webley accupell) say 5.5mm on the tin, but are they all the same? Does anyone use a pellet sizer to ensure that every pellet is the same size going into the barrel. I see there are other brands of pellets 5.51, 5.52, 5.53mm these are such minute increments does it really make a difference ? Should I try these other sizes to see if they're a better fit ?
BASC Airgun Member - Responsible Shooter 🏴󠁧󠁢󠁥󠁮󠁧󠁿
Theoben Rapid 7 Mk1 .22
Weihrauch HW100KT .22
Weihrauch HW98  .177
Walther LGM-1 .177

nevadacowboy

You already have a pellet sizer, it's called the barrel.  All pellets are sized when they hit the choke on the barrel.
Bob
Once a Sapper always a Sapper

jps

Quote from: nevadacowboy on July 26, 2020, 12:27:21 PM
You already have a pellet sizer, it's called the barrel.  All pellets are sized when they hit the choke on the barrel.

And the blast of air behind the pellet on firing also goes a long way to sizing the pellet to the barrel.
RUNT

KCE

Bui what about an unchoked barrel how does that work.
Regards kev.
Regards KCE
Admin.

Ca_Varminter

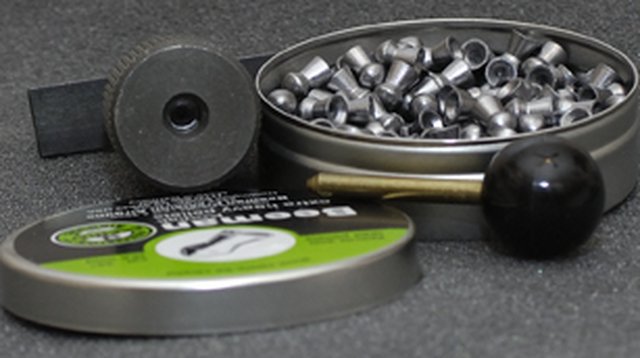

Well I do have a little Gem...
So does anyone remember this guy??


The bore is tapered. so the head of the pellet would be slightly smaller than the skirt....
I use mine mainly to sort and reshape the skirt.
Any pellet that was loose, I would toss..

Stuart

KCE

Never seen one before stuart.
A handy bit of kit to have.
Regards Kev.
Regards KCE
Admin.

Ca_Varminter

#6

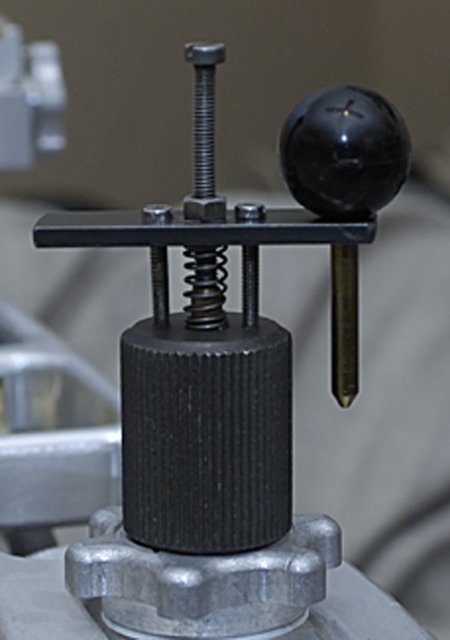

Theoben Pellet Sizer!!

I got it when I ordered my First Rapid ..MK II w/sporter trigger..
The One that I had it converted to use the Mark 4 trigger cartridge..

Stuart

Topsparx1

So how does that work Stuart, simply push a pellet through a pre-sized hole with the pusher thing on the side ??
BASC Airgun Member - Responsible Shooter 🏴󠁧󠁢󠁥󠁮󠁧󠁿
Theoben Rapid 7 Mk1 .22
Weihrauch HW100KT .22
Weihrauch HW98  .177
Walther LGM-1 .177

Ca_Varminter

Yep...
Like I said, the bore of the sizer is tapered.
So the center pin can be adjusted in or out. depending on how much sizing you need...
So you push a pellet in that brass pusher with the round knob, until it hit that center pin.
Then push the pellet out using the cross-bar..


Stuart

nevadacowboy

Looks just like the T R ROBB adjustable pellet sizer.
Bob
Once a Sapper always a Sapper

KevG

the pellet should be sized as the probe shoves it in to the barrel bore.
KevG
Regards KevG.
